The PE Series Jaw Crusher is designed for primary crushing of granite, basalt, river stone and ore. The range includes nine models from PE250×400 to PE1500×1800. Model selection is based on maximum feed size, required capacity and discharge-opening range.

Tanker CS/CH single-cylinder hydraulic cone crushers are designed for secondary and tertiary crushing of medium-hard to hard rock and ore. The model and cavity are selected according to feed size and the required final product grading.

CS Series Symons-Type Cone Crusher The CS Series spring cone crusher is designed for secondary, medium and fine crushing of medium-hard to hard rock and ore. Its interparticle compression action helps produce a more uniform grading and a cubical product shape. CSB standard and CSD short-head configurations are selected according to feed size and the required final grading. The spring release system protects major components when uncrushable material enters the chamber.

The HPC Series Hydraulic Cone Crusher is designed for secondary and fine crushing of hard rock and ore. Hydraulic adjustment and chamber clearing simplify adaptation to different crushing circuits and help restore operation after an overload.

The PY Series Spring Cone Crusher is designed for secondary and fine crushing of medium-hard to hard rock and ore. PYB, PYZ and PYD chamber configurations allow the crusher to be matched to the required feed size and finished-product grading.

The VSI5X vertical shaft impact crusher is designed for manufactured-sand production and aggregate shaping. Its high-speed rotor accelerates material and directs it toward the material bed or impact elements inside the crushing chamber. The series includes four models and supports both central feed and combined central-plus-cascade feed. Model selection depends on raw-material hardness, feed size, required throughput and finished-product requirements.

The CI Series Impact Crusher is designed to crush medium-hard, brittle and relatively low-abrasion materials by impact. Eight models accept feed from 250 to 800 mm and provide rated capacities of 60–2,000 t/h.

The FX Series Fine Sand Recovery System recovers useful fine particles from wash water and other process slurries. A pump, hydrocyclone and dewatering screen separate fine sand from the liquid and discharge a product that is easier to transport and stockpile.

The PC Series Hammer Crusher reduces soft to medium-hard, brittle and relatively low-abrasion materials by impact. Four models accept feed up to 400 mm and produce material smaller than 15 mm at rated capacities of 5–80 t/h.

The XL Series Spiral Sand Washer separates clay, dust, stone powder and other light impurities from natural or manufactured sand using water. Single- and twin-spiral models are designed to wash, agitate, partially classify and discharge material sized 0–30 mm.

The 2PG Series Double-Roller Crusher is designed for secondary and tertiary crushing of soft to medium-hard brittle materials. Two counter-rotating rolls reduce the feed by compression and partial shear through an adjustable 2–10 mm discharge gap.

The XSD Series Wheel Sand Washer uses water to remove clay, dust, stone powder and other light impurities from natural or manufactured sand. A slow-turning wheel lifts the material from the washing tank, drains part of the free water and transfers it to the next process stage.

The ZSD Series Dewatering Vibrating Screen removes excess water from wet sand, fine aggregate, mineral concentrate and tailings. It retains solids on the screening surface while allowing water to pass through, producing material that is easier to transport and stockpile.

The HGM Series Ultrafine Grinding Mill is designed for dry grinding of limestone, calcite, dolomite, gypsum, barite and other mineral materials to approximately 325–2500 mesh.

The Ball Mill uses steel grinding media to reduce pre-crushed ore and other mineral feed to a fine product. The selected model range covers 0.65–615 t/h and can be configured for dry or wet grinding.

The SRM Series Vertical Roller Mill combines drying, grinding, classification and pneumatic conveying in one system. SRM1300–SRM2200 models provide rated capacities of 10–135 t/h and finished fineness of 45–212 μm.

The MTW Series Raymond Mill is designed to dry-grind mineral feed into fine and medium-fine powder. MTW110–MTW215 models provide rated capacities of 3–50 t/h and finished-product sizes of 0.038–1.6 mm.

The GZ Series Electromagnetic Vibrating Feeder provides uniform continuous or metered feeding of powder, granular and small-lump materials from a hopper to downstream equipment. GZ1–GZ5 models cover 5–140 t/h depending on installation angle.

The T Series Bucket Elevator continuously lifts powder, granular and small-lump materials vertically. The model range provides rated volumetric capacities of 34–1,112 m³/h and lifting heights of up to 50 m.

The ZK Series Linear Vibrating Screen classifies powder, granular and small-lump materials. Two vibration motors generate linear motion across the screen deck.

The GZG Series Vibrating Feeder continuously and uniformly transfers bulk, granular and powdered materials from a hopper to a crusher, conveyor or other receiving machine. Rated capacity ranges from 30 to 1,400 t/h depending on installation angle.

The ZSW Series Vibrating Feeder continuously and uniformly delivers large-lump and granular material from a hopper to a primary crusher. With a grizzly section, it can also remove soil and fine particles before primary crushing.

The YK Series Circular Vibrating Screen separates crushed stone, aggregate, sand and ore into specified fractions. Two-, three- and four-deck configurations produce several finished size classes simultaneously.

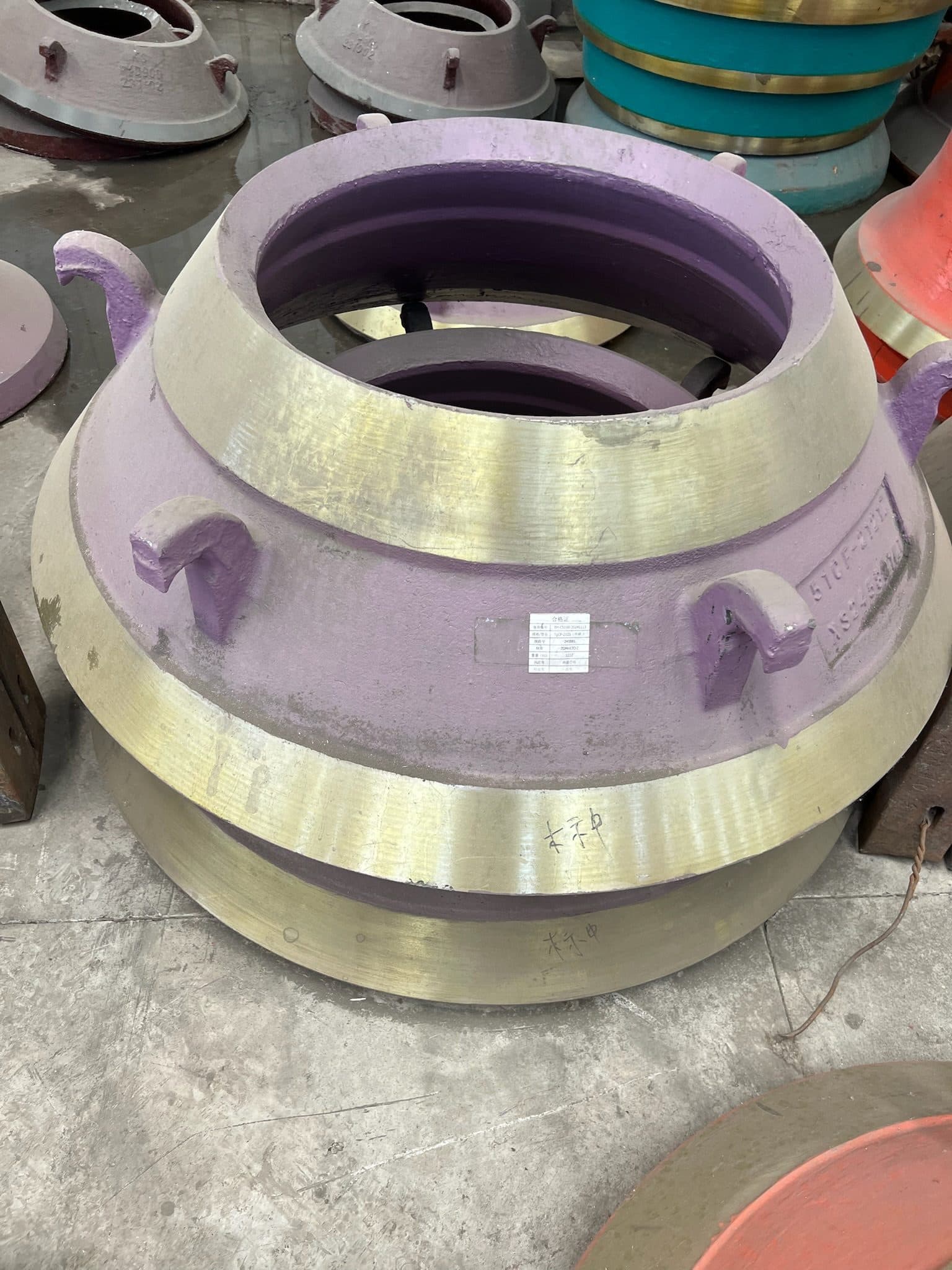

Cone crusher liners are the principal wear parts that form the crushing chamber and contact the feed directly. Rock and ore are compressed between the moving mantle and stationary concave. Liner dimensions, chamber profile and steel grade are selected for the crusher model and operating conditions.

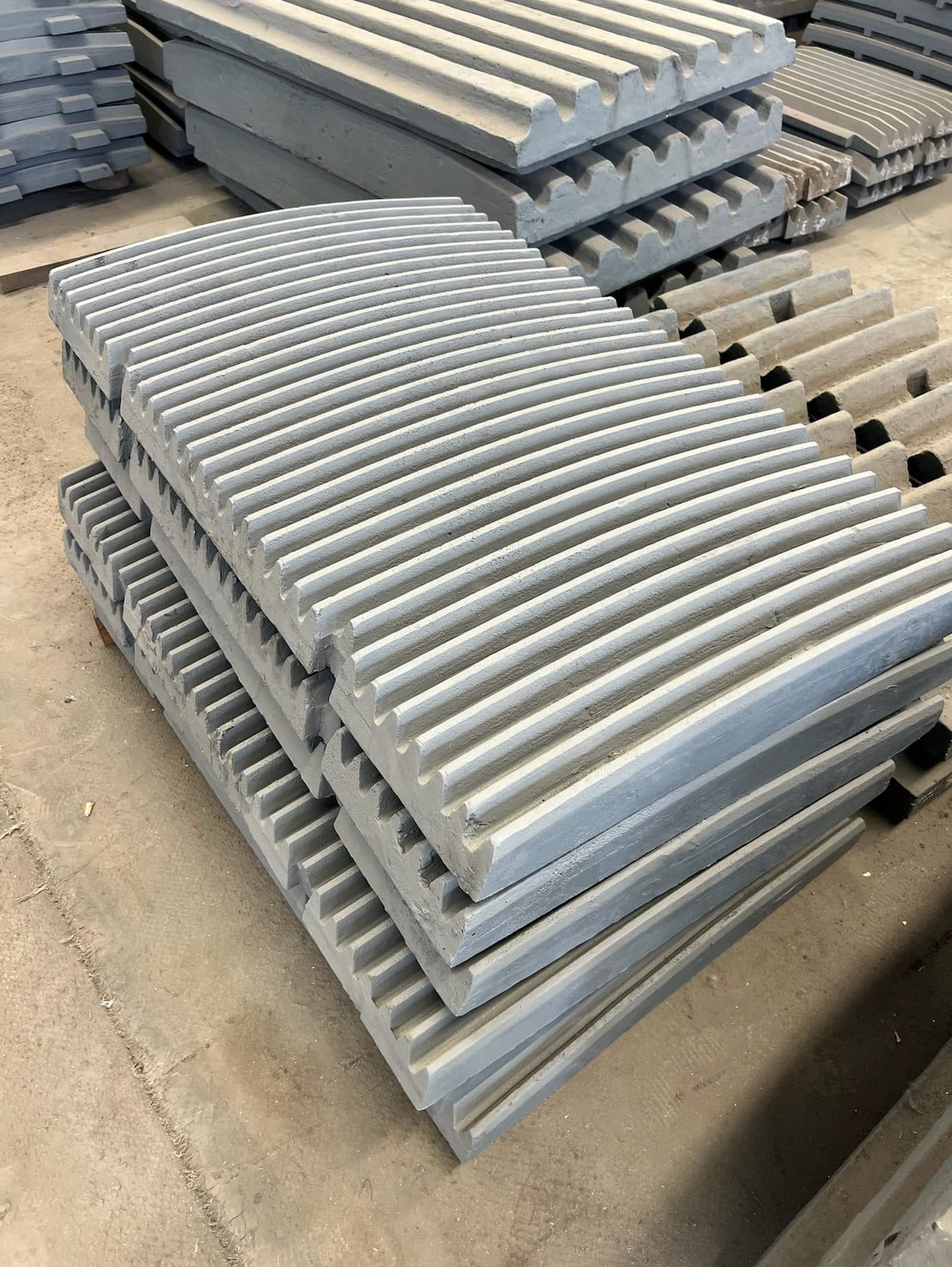

Jaw plates are the principal wear parts in a jaw crusher and contact the feed directly. The movable and fixed plates reduce rock and ore by compression. Dimensions, tooth profile and material grade are selected for the crusher model, feed hardness and abrasiveness, and operating conditions.

The Belt Conveyor continuously transfers stone, aggregate, sand, gravel, ore and other bulk materials between process stages. It connects crushers, vibrating screens, feeders and finished-product stockpiles into one production system. Belt width, conveyor length, inclination and drive power are engineered for the project.

The TANKER PF Series Impact Crusher is a conventional, economical horizontal-shaft impact crusher (HSI) for secondary crushing of limestone, dolomite, concrete and other low- to medium-abrasion materials. The range covers 30–500 t/h with feed up to 700 mm, depending on model, combining a high reduction ratio, cubical aggregate shape and simple mechanical construction. For highly abrasive basalt, quartzite and high-silica granite, a jaw-and-cone crushing circuit should also be evaluated because blow-bar and impact-liner consumption can become expensive.

The HZS90 Concrete Batching Plant is a stationary, fully automatic system designed to produce approximately 65–90 m³/h of ready-mix concrete. A JS1500 twin-shaft mixer, PLD2400 aggregate batching unit, belt conveyor, separate cement, water and admixture weighing systems, and PLC control form the standard process.

The YGM Raymond Mill is a high-pressure roller grinding system developed from the conventional Raymond mill. Its spring-loaded roller assembly increases grinding force for more efficient processing of dry mineral materials.
